Description

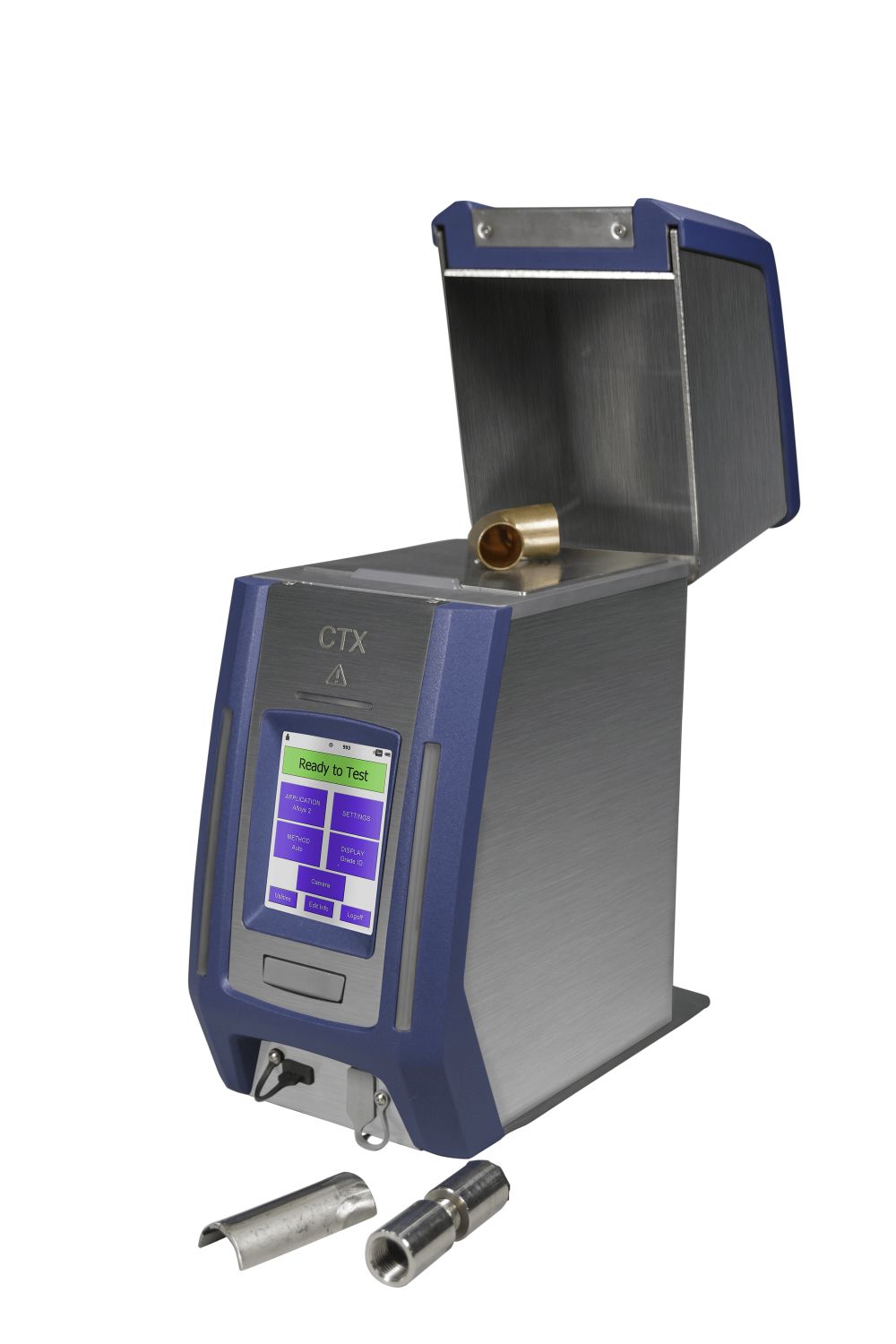

CTX CounterTop XRF
Portable, small, light-weight, safety-interlocked, and battery operated. At less than 7 kilograms in weight, the self-contained CTX is truly portable, and has a small footprint of 14 cm in width.
The CTX uses a 4W X-ray source featuring Bruker’s patented SharpBeam™ optimised X-ray geometry, a high-performance silicon drift detector (SDD) with Bruker’s patented DetectorShield™, as well as Wi-Fi, Bluetooth® and USB connectivity. The CTX’s touchscreen user-interface provides measurement control and results display. Additionally, Bruker’s Toolbox PC software enables full remote operation of the CTX and optional PC software includes Bruker’s Artax™ for advanced qualitative, semi-quantitative composition analysis, as well as EasyCal™ for user-defined empirical correlations.
Product Specifications
| For Individual Specifications – Refer to Models | |
| Calibration Range | 32-37 Elements |
| Weight | 7.1kg with battery |
| Dimensions | W13.5 x D25 x H35cm |
| Detector | Large area CUBE SDD, Standard SDD and Si-PIN |
| Collimator Options | 5mm Standard; 8mm or 3mm Optional |
| X-ray Tube | Rh target; max voltage 50 kV |
| Filter Changer | 5 Position motorised filter changer or Optimised fixed filter |
Models
The CTX 800 model is our highest specification model in the CTX Countertop series. We recommend this model for exploration and mining alloys or environmental analysis where you are looking for sensitivity to light elements. Specifically, this model excels at targeting the light elements for custom calibrations.
Features of the CTX 800:
- a Large area CUBE™ SDD® detector
- TITAN Detector Shield™
- Collimator 5mm standard spot size, with 8 or 3mm optional
- 5 position automatic filter changer
- patented SharpBeam® beam path
- elemental range Mg(12) – U(92)
- Colour CMOS Camera as standard
- Rh target X-ray tube, 4W excitation source, 6-50 kV, 5-200mA
- a Large area CUBE™ SDD® detector
- TITAN Detector Shield™
- 5mm standard spot size
- 5 position automatic filter changer
- patented SharpBeam® beam path
- Elemental range Mg(12) – U(92)
- Optional Colour CMOS Camera
- Rh target X-ray tube, 4W excitation source, 15-50 kV, 5-100mA
The CTX™ 500s model is ready to go, factory calibrated to comply with MARPOL regulations for sulfur in fuel oil testing. They measure up to 1000 ppm (0.1%) sulfur with an error less than ±100 ppm sulfur in 60 or 30 seconds with an LOD of 30ppm (3σ) and an LOQ of 100ppm (10σ).
Features of the CTX 500:
- An SDD detector
- TITAN Detector Shield™
- 5mm standard spot size
- Patented SharpBeam® beam path
- Rh target X-ray tube, 4W excitation source, fixed current 40kV
The CTX 500 model is recommended for PMI applications where light element (LE) capability is not required.
Features of the CTX 500:
- An SDD detector
- TITAN Detector Shield™
- 5mm standard spot size
- Otimised Fixed filter
- Patented SharpBeam® beam path
- Elemental range of Ti – U
- Rh target X-ray tube, 4W excitation source, fixed current 40kV
- Rh target X-ray tube, 4W excitation source, fixed current 40kV
- SiPIN diode detector
- TITAN Detector Shield®,
- Fixed filter
- Elemental range Ti – U
