Optimal Sample Types & Conditions:
ASD Terraspec 4 SWIR/NIR Instrument
From $400.00 - $925.00 Unit Price

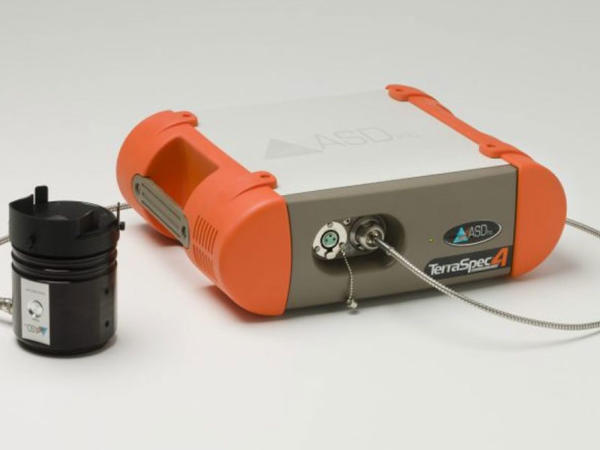

ASD Terraspec 4 NIR/SWIR
Choosing Preferred Dates (below)
Once you click [ENQUIRE NOW] one of our helpful team will be in contact to confirm instrument availability. Exact dates are subject to pXRF fleet availability.
Day based pricing : SWIR/NIR Spectral Evolution
Description

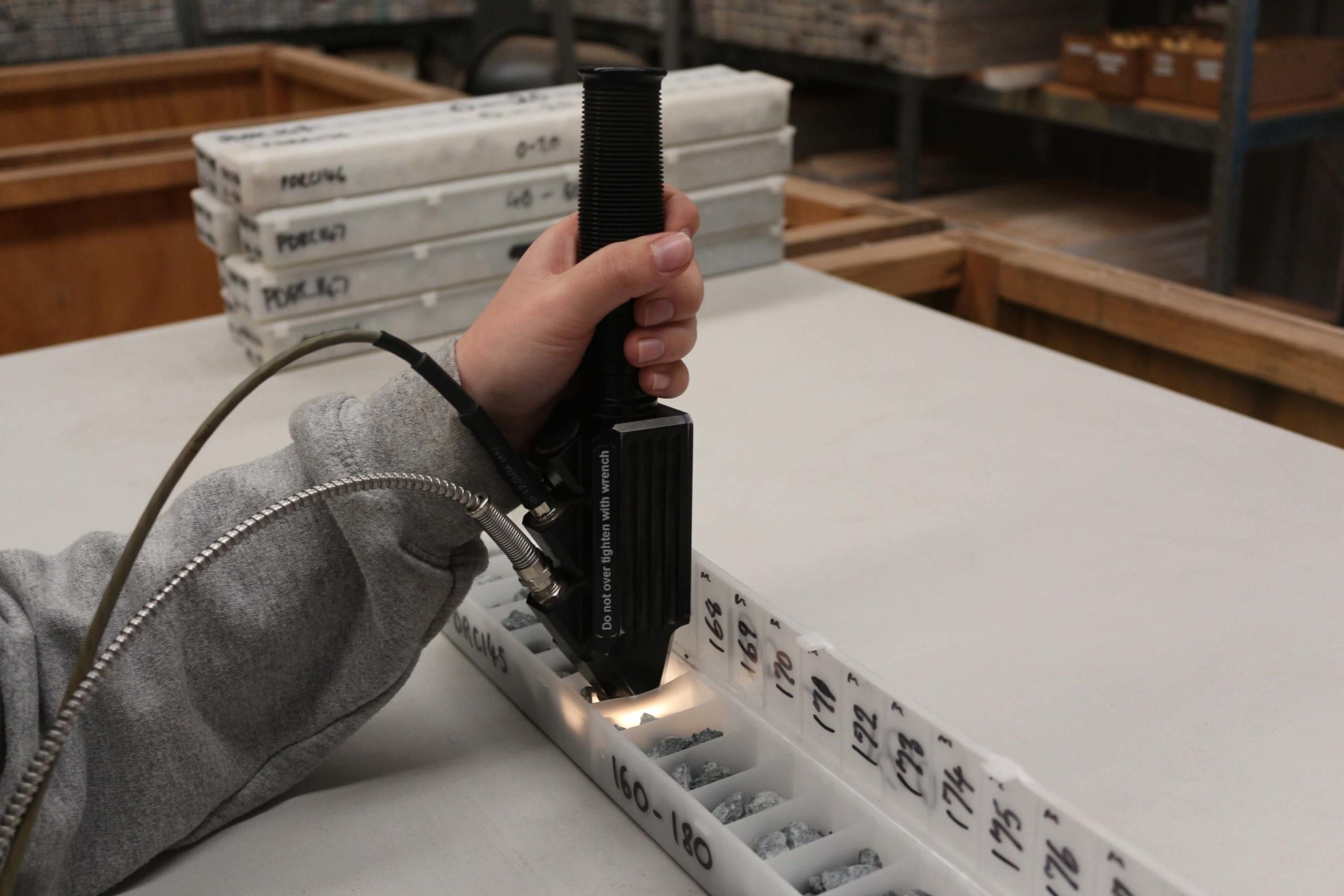

Recognised as the de facto NIR spectrometer technology, the portable TerraSpec 4 ASD is a user-friendly and rapid system for characterising hundreds of mineralogical samples per day providing the real-time information necessary to optimise the exploration process. The system can analyse outcrops, hand specimens, diamond core, RC drill chips, and — all with little or no sample preparation.
Near infrared (NIR) spectroscopy is a widely used exploration tool as it provides a simple means of rapidly identifying mineral zonation and information for vectoring at the regional and deposit scale.
What does this analyse?
The TerraSpec 4 ASD is well suited for the identification and characterisation of many mineral species including Fe-oxides, white micas, kandites, smectites, alunite, sulfates, pyrophyllite, diaspore, topaz, zunyite, carbonates, chlorite, epidote, amphiboles, biotite, and tourmaline amongst other minerals.
The TerraSpec 4 ASD will map and characterise alteration zones associated with many ore deposit styles (e.g., regolith, orgoenic gold, VHMS, epithermal and porphyry deposits). Since many of the minerals are stable over limited temperature and pH ranges, their distribution and variable spectral features (e.g., composition, crystallinity) allow for reconstruction of the thermal, geochemical and weathering environment which will assist in recognising and vectoring toward mineral deposits.
Product Specifications
| Wavelength | 350-2500 nm |
| Resolution | 3 nm @ 700 nm and 6 nm @ 1400/2100 nm |
| Scanning Time | 100 milliseconds |
| Signal-to-noise Ratio | VNIR: 9,000:1 @ 700nm |
| SWIR 1: 9,000:1 @ 1400 nm | |
| SWIR 2: 4,000:1 @ 2100 nm | |
| Stray Light | VNIR: 5,000:1 (0.02%) |
| NIR: 10,000:1 (0.01%) | |
| Wavelength Reproducibility | 0.1 nm |
| Wavelength Accuracy | 0.5 nm |
| Channels | 2151 |
| VNIR Detector | (350-1000 nm) 512 element silicon array |
| SWIR 1 & 2 Detectors | (1001-1800 nm) & (1801-2500 nm) Graded Index InGaAs Photodiode, TE Cooled |
| Communications | Wired: 10/100 Base T Ethernet port with Ethernet cross-over cable |
| Wireless: 802.11g/n wireless card | |
| Dimensions | H12.7 x W36.8 x D29.2cm |
| Weight | 5.44kg |
| Battery Weight | 1.2kg |
| Battery Run Time | Approximately 6 hours (without lamps or accessories) |
| Operating Temperature | 0 to 40 degrees C |
| Storage Temperature | -15 to 45 degrees C |
| Input Power | AC/DC switching power supply |
| AC Input | 90-240 VAC, 50/60 Hz |
| DC Input | 12 VDC, 60 W |
| Auxiliary Port Power | Output, +12 VDC, 27 W (max) |
| Software | RS3™ spectral acquisition software, Compatibility with The Spectral Geologist and SpecMin, Seamless interface with ENVI®, ASD ViewSpec™ Pro for post processing, optional Indico® Pro |
Additional information
| Weight | 20 kg |
|---|---|
| Dimensions | 62 × 50 × 31 cm |
