Bruker ELIO

Portable Micro XRF Spectrometer

SKU: ELIO_01 Categories: ,


Portable Micro X-ray Fluorescence Spectrometer

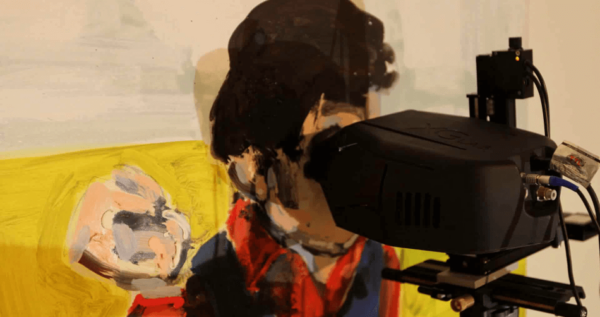

The ELIO is a compact and portable energy dispersive X-ray fluorescence spectrometer for reliable non-contact and non-destructive elemental analysis of valuable materials. It delivers high performance, accuracy and precision in the most demanding applications. The ELIO accelerates state-of-the-art in XRF analytical instrumentation with truly portable elemental map acquisition incorporating CUBE technology, accurate spot positioning, straight forward add-on hardware and mapping software.


  • Rh-target microfocus 10-50 kV X-ray rube Excitation
  • 17mm² SDD with CUBE technology detection
  • Analysis Range: Na (Z = 11) to U (Z = 92), light elements capable down to Na with optional He purge
  • Integrated video microscope camera for magnified image of the analysis area
  • Measurement head W x D x H: 170mm x 265mm x 170mm
  • Weighs 2.1KG
  • 6-8h operation with 12V 8Ah battery
