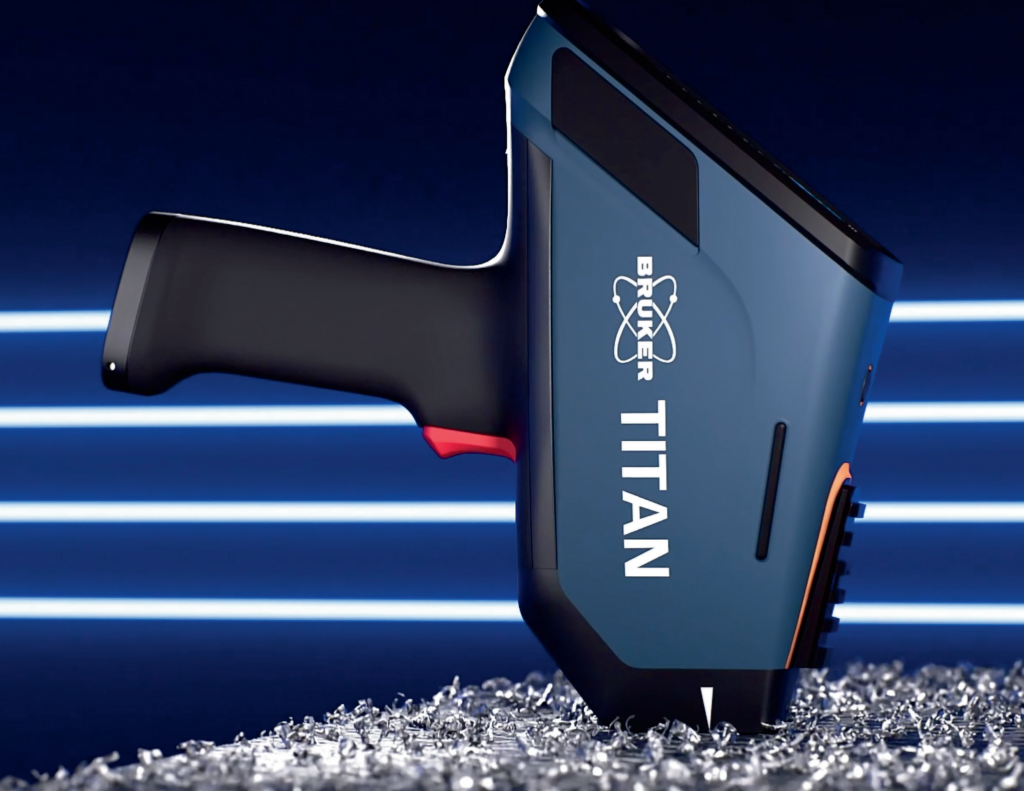

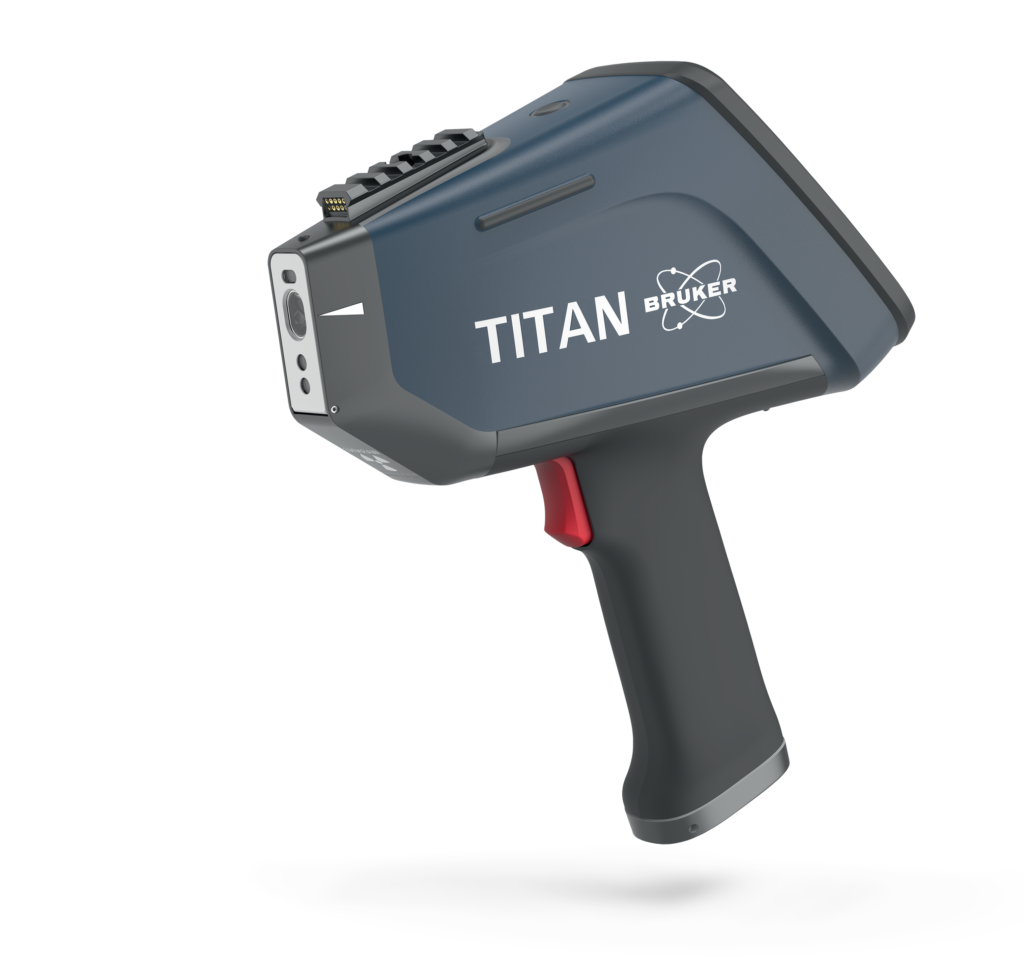

The Bruker TITAN 380 is a next-generation handheld XRF analyser built for rapid, reliable elemental analysis in demanding field and industrial environments.
Combining a powerful 5 W X-ray source, graphene-window detector and count rates of up to 800,000 cps, the TITAN 380 provides immediate elemental information from magnesium to uranium.

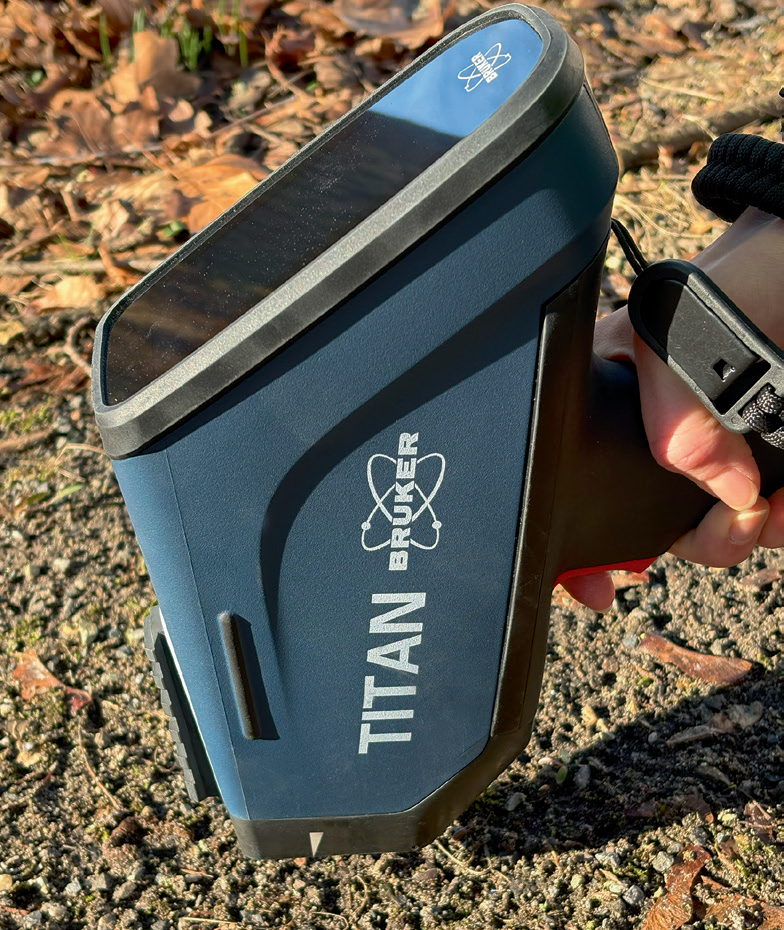

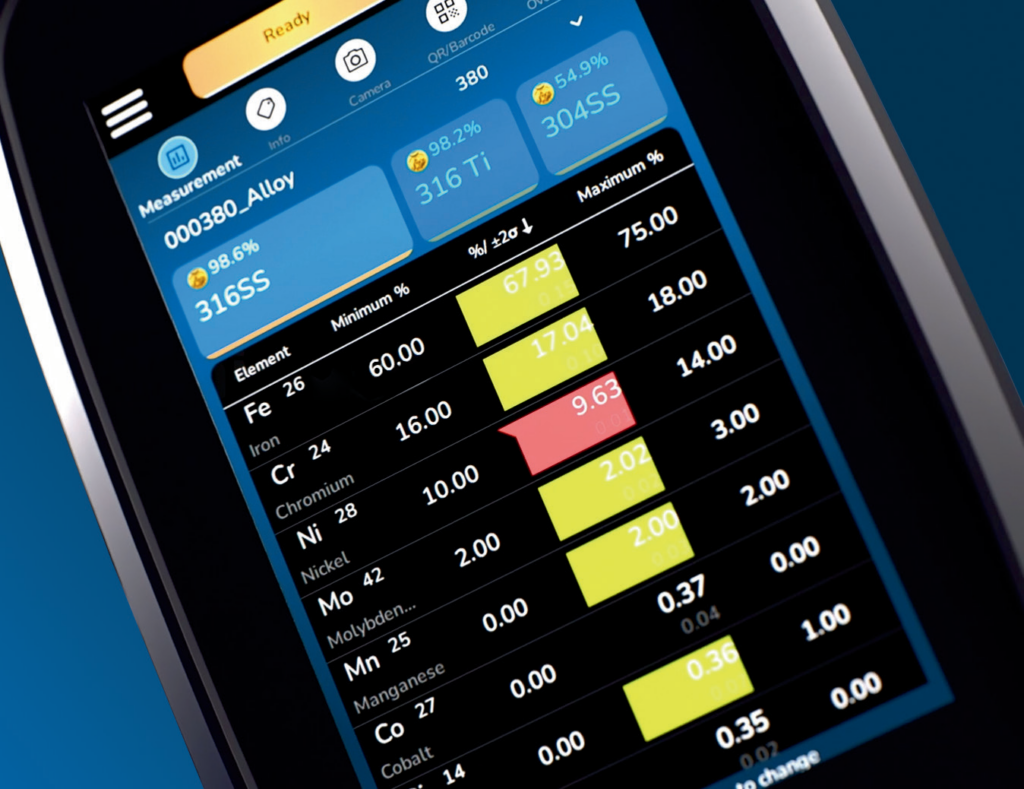

At only 1.7 kg with its battery, it is comfortable to operate throughout long shifts. Its intuitive touchscreen, dual cameras and selectable measurement spots make accurate analysis and sample documentation straightforward.
The patented TITAN DetectorShield™ protects the detector against accidental punctures while analysis is underway.
This is particularly valuable when measuring sharp, rough or irregular materials such as drill samples, wire, swarf and scrap metal. DetectorShield reduces the risk of costly detector repairs and unplanned instrument downtime without sacrificing measurement speed or analytical performance. When a detector is punctured it can be a costly repair that can range anywhere from ~$7,000 – ~$10,000 (not including the potential down time resulting from a puncture).
The TITAN 380 GeoChemistry application was developed using 97 geological reference materials and includes dedicated three-phase methods for oxide and sulfide samples.
It provides rapid elemental information for:
Results are available immediately, helping geologists adapt sampling and exploration programs while samples are still in front of them.
The TITAN 380 also supports applications across alloy identification, manufacturing, scrap-metal sorting, precious metals, environmental screening, restricted materials, oil and gas, research and education.
A range of matrix-matched calibrations is available. Portable Spectral Services can also assist with application selection, method development, training and customised calibrations.
Other industries with applications suitable for portable XRF include foreign body investigation, academics, arts, archaeology and conservation, environmental, oil and gas, agriculture, restricted materials and domestic settings. If you would like more information on your specific application or industry, chat with one of our specialists.
Answer a few quick questions and one of our team of experts will be in touch to guide you on which instrument best suits your needs and explain why.
